2020 Day 8: Quick Update

2020 Day 8: Quick Update

Power Cell Shooter Testing

Quick shooter testing video from today, we are now starting to believe we can make a more consistent shooter. Our plan is to have a wide 6″ wheel and concentric flat hood. That will be were are next shooter starts.

https://photos.spectrum3847.org/2020-FRC/2020-Build-Season/i-ptLfBsS/A

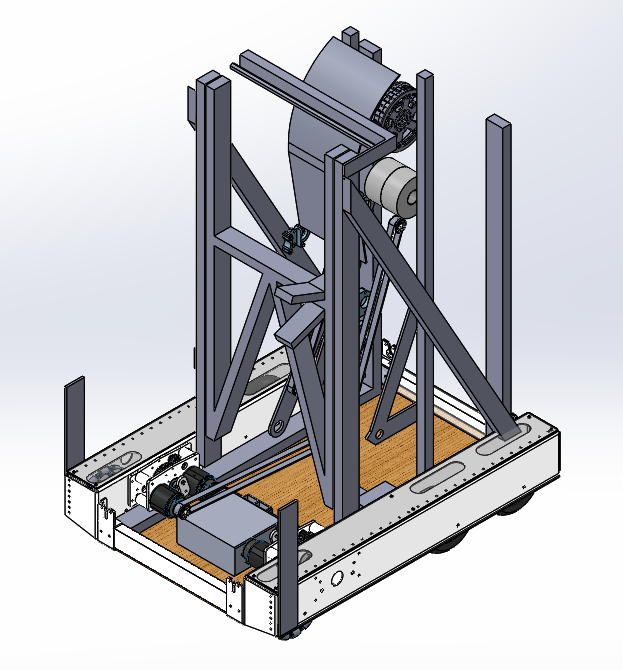

Block CAD of the Robot

As subsystems start figuring out how much room they need we star laying things out in quick block sketches to make sure we won’t have systems needing the same space and see how we can leverage nearby subsystem together.
This is all very rough and almost none of this other than the drive train will actually be on our robot. It’s also missing an intake at the moment as we are still figuring out exactly what that will look like.
