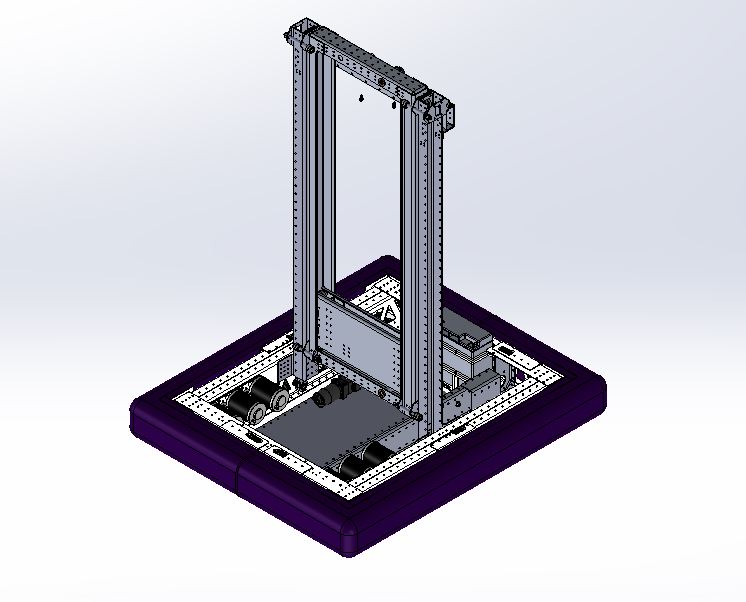

We spent the long weekend getting the drive train, elevator, and climber ready to be sent off to our sponsor Solarcraft Inc. for laser cutting and bending.

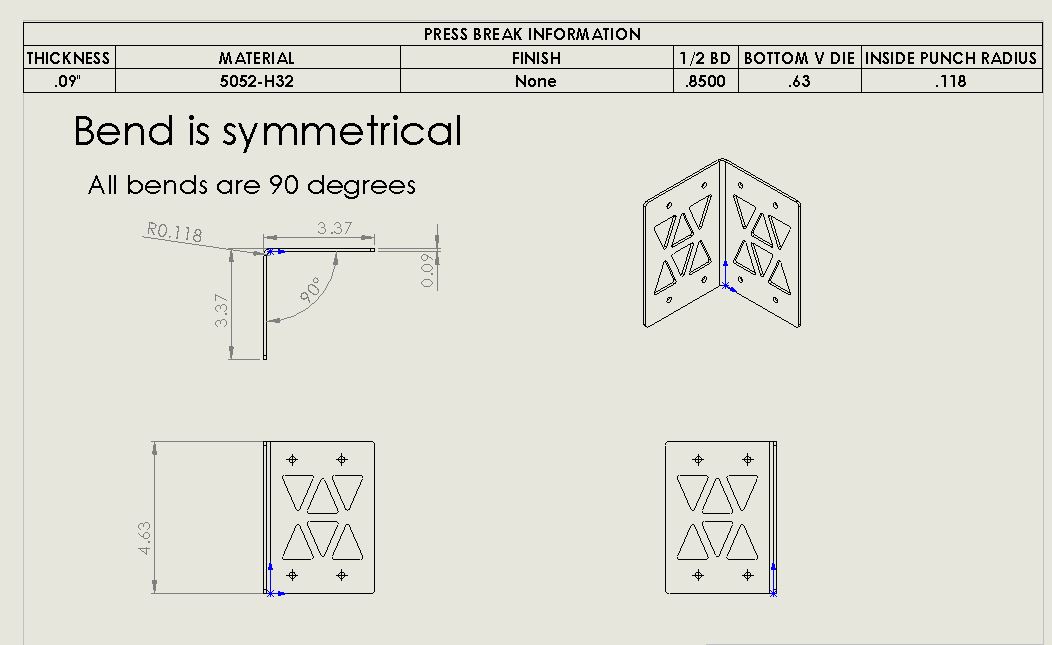

For each part we have to make sure the part is created properly with the correct bend deduction and bend radius, and then create flat pattern dxfs, part bend drawings, and pdfs for each part. We sent off about 30 unique parts on this run and that doesn’t include mirrored parts.
