Day 15: More CAD

Hook geometry to starting to take shape. We love this video by Adam Heard and 973 for designing pneumatic linkages.

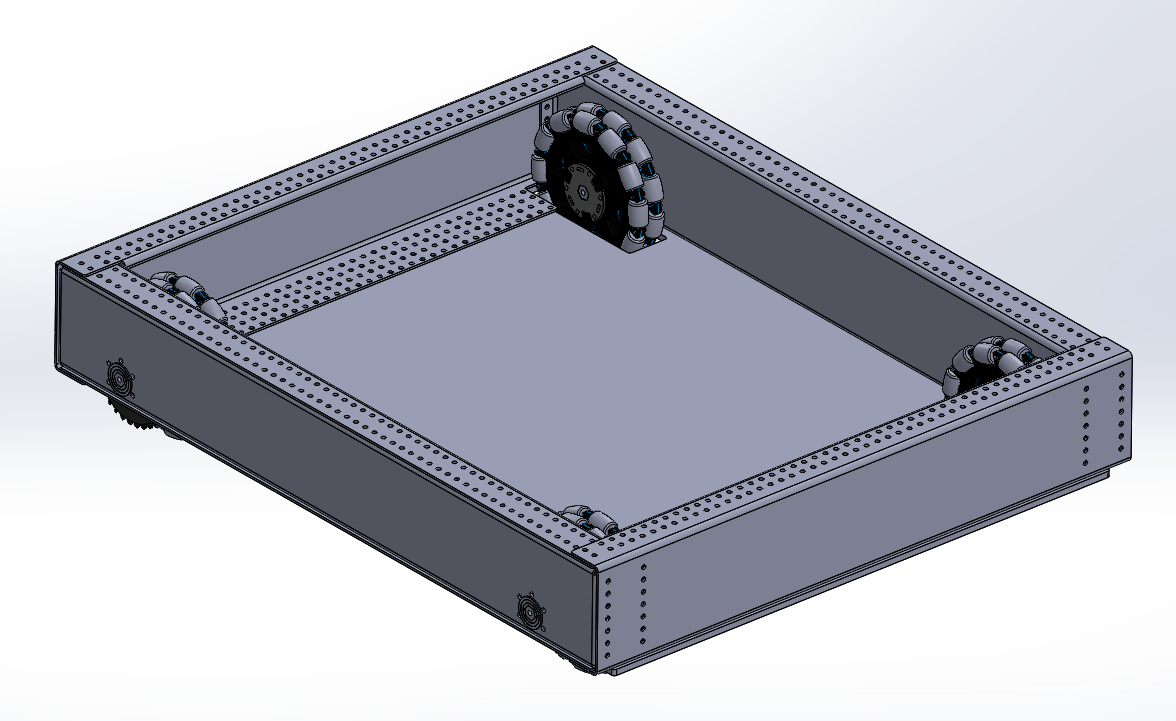

Drive train is moving along, it now has a belly pan and more holes

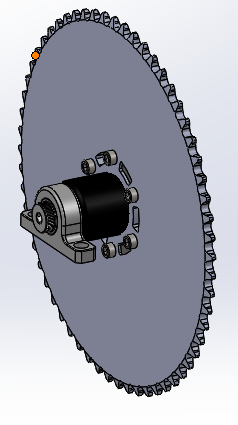

Arm pivot is more flushed out, we’ll be using a colson dead hub in a way it wasn’t designed for but it should serve us well in this new role.
– Spectrum
