Day 12: Sencond Ice Day

We couldn’t meet Tuesday or Wednesday this due to hazardous road conditions and closed highways.

We are too the stage we call Block CAD. None of parts are how they would actually be manufactured but they are more than just two D sketches. If we have prototypes CADed of the systems we can use those as place fillers but a lot of the elements are just simple extrusions based on our previous sketches. This stages helps get robot from just a bunch of collective thoughts to something with a little more detail. You can start seeing in 3D where you care going to have packaging problems and where you need dedicate more thought to your final solutions.

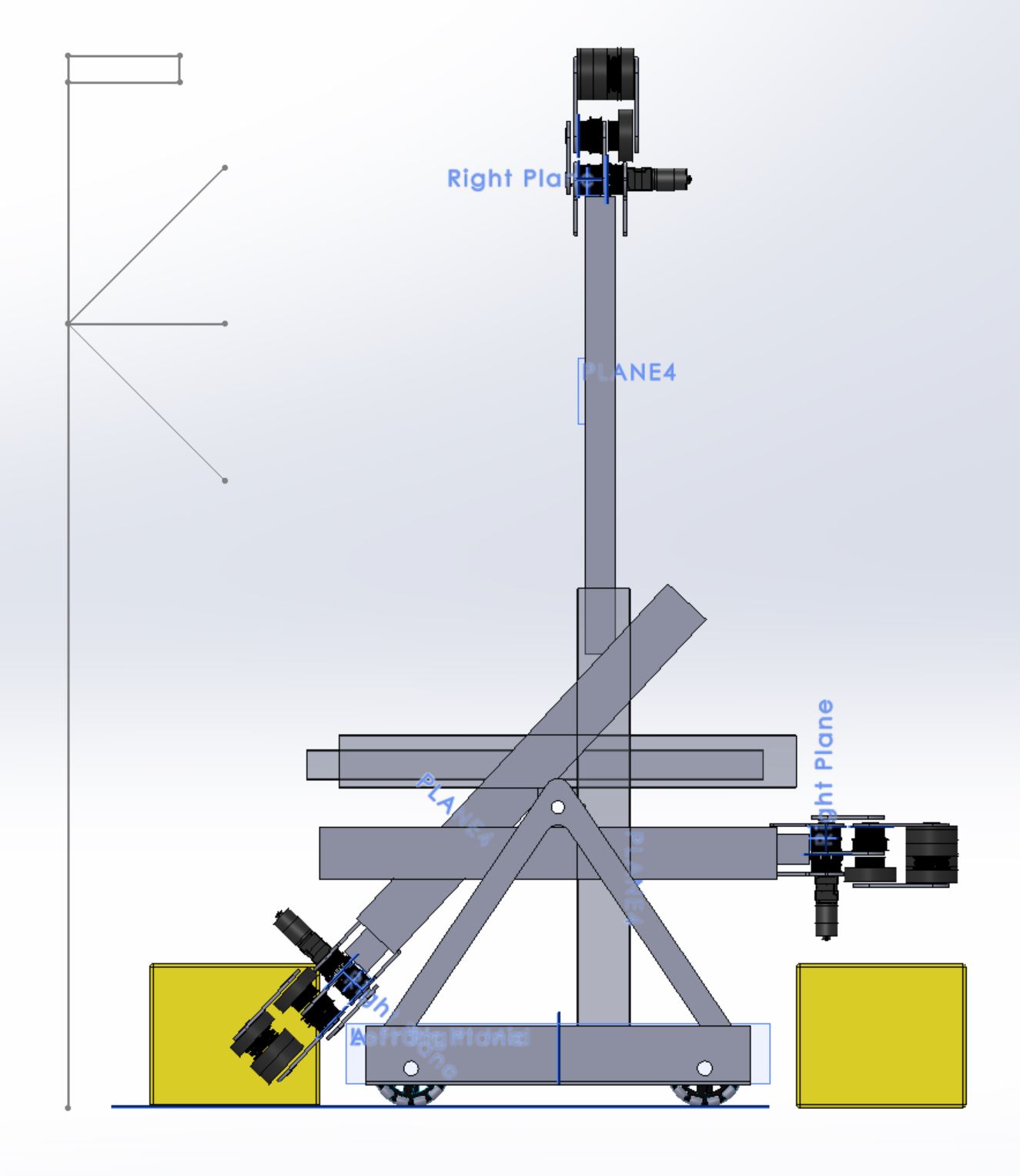

Side view of the robot with the arm in multiple positions. The final intake won’t have motors sticking out the top to allow it to flip from side to side.

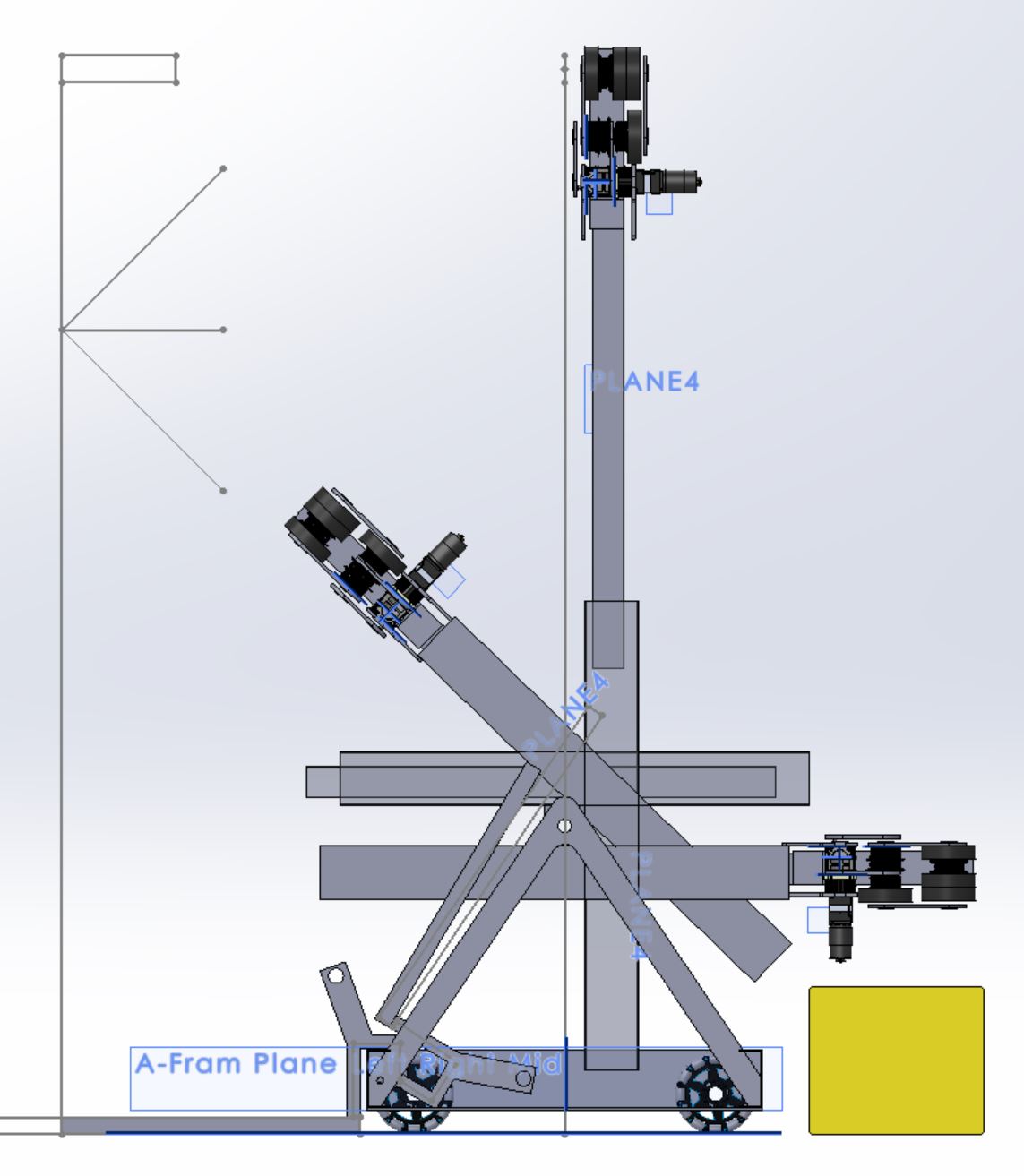

Side view of the robot with the tailgate attached and shown in the up and down positions.

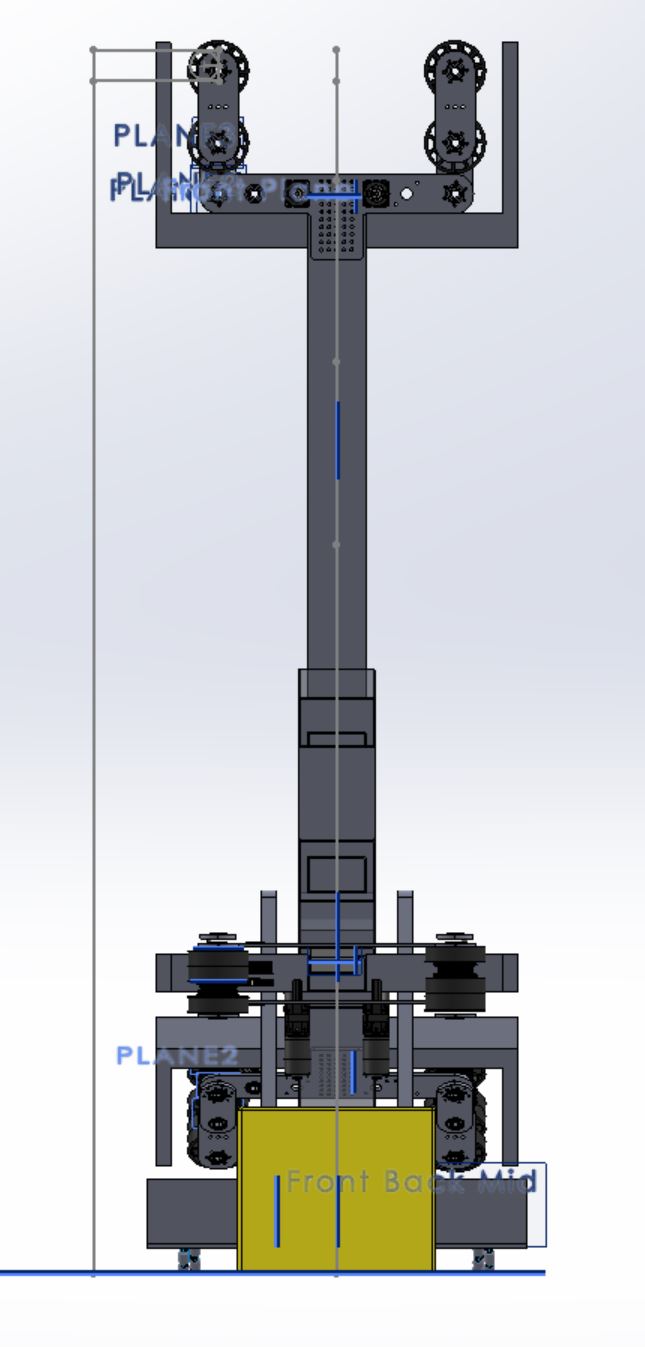

Head on view with the arm straight up. Easy to see how a fold out hook will be able to latch on to the square tubing of the rung.

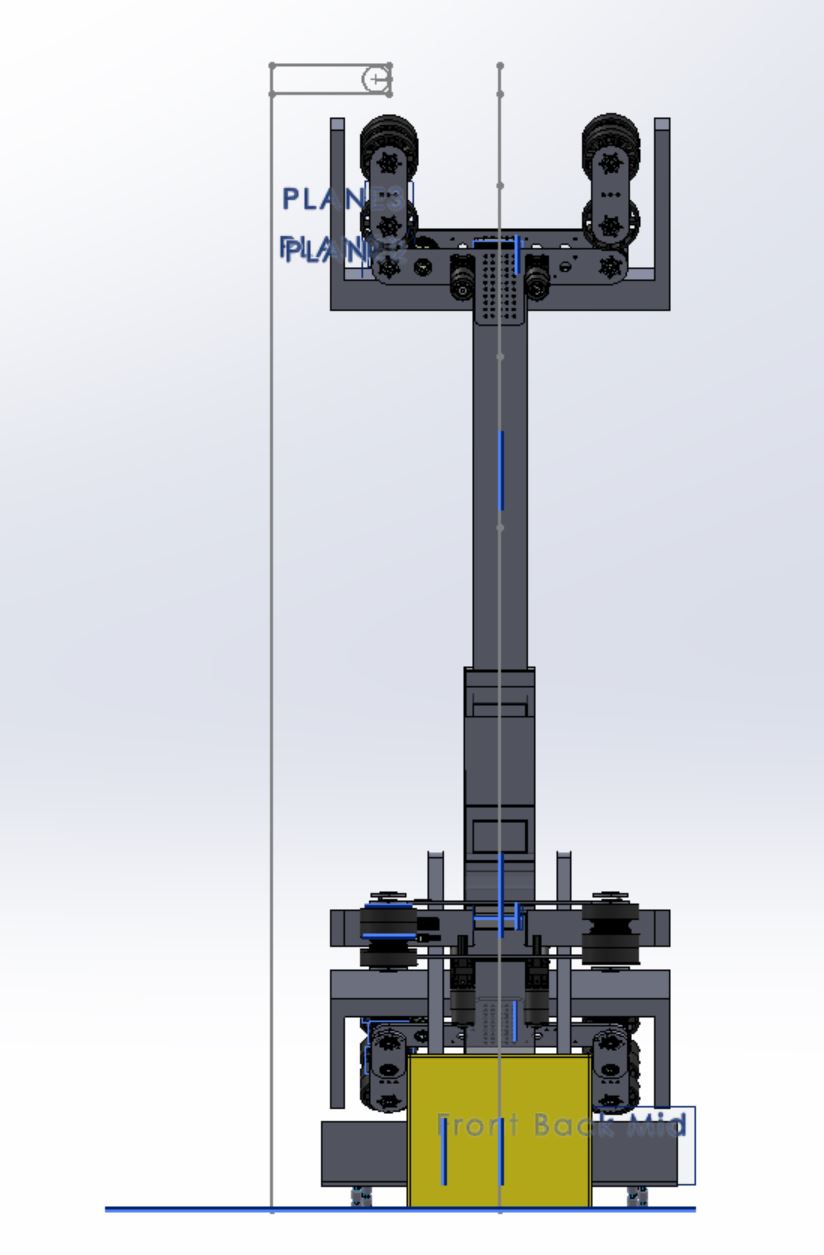

 Head on view with the intake tilted at the frame perimeter, this is if we are potentially reaching over another robot that is already hanging to grab the rung.

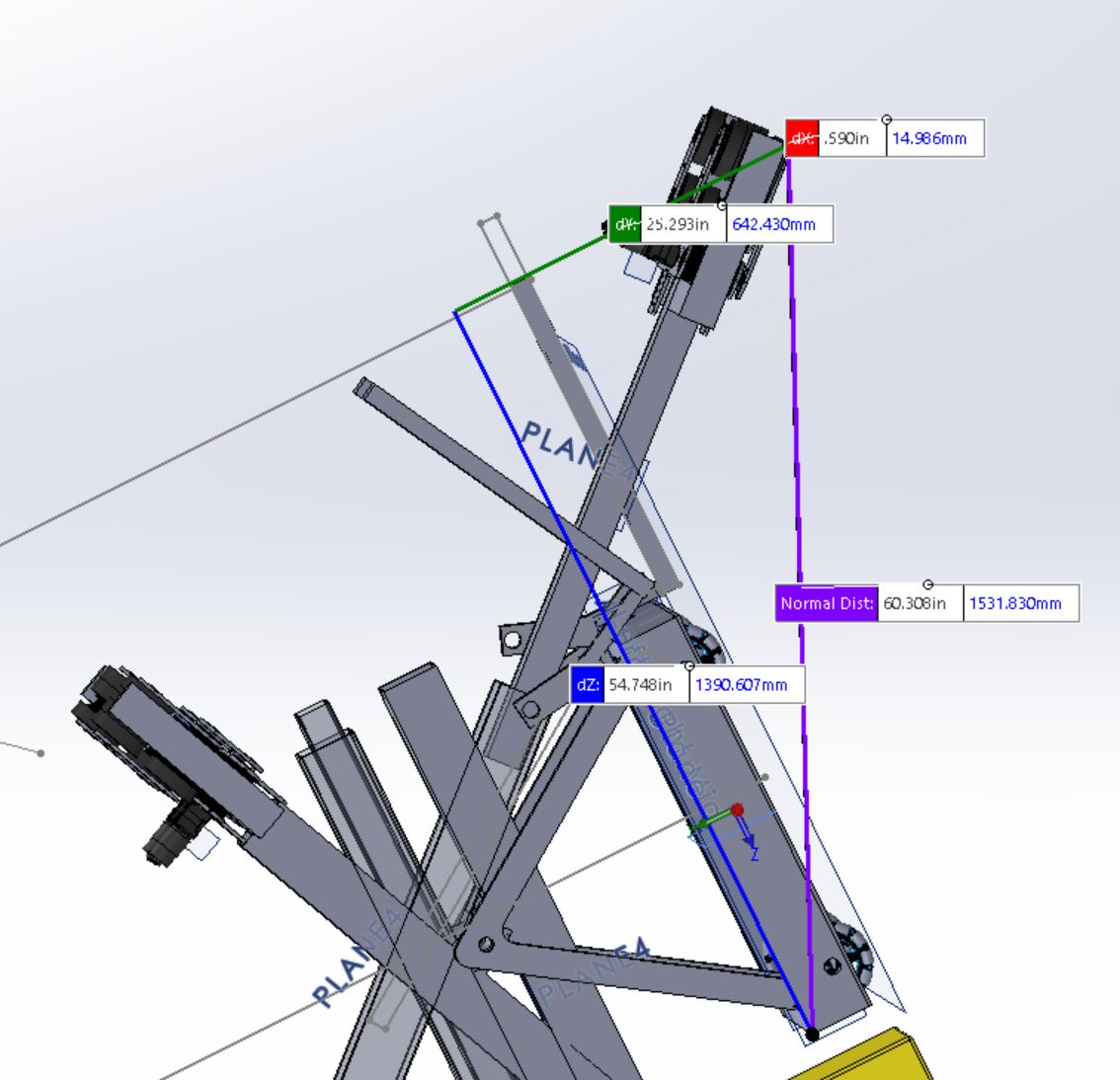

 This position show the length of the robot during it’s curled position. The final size will add a few inches for bumpers and any length that we make the hook.

There are still tons of details to iron out with our systems.
