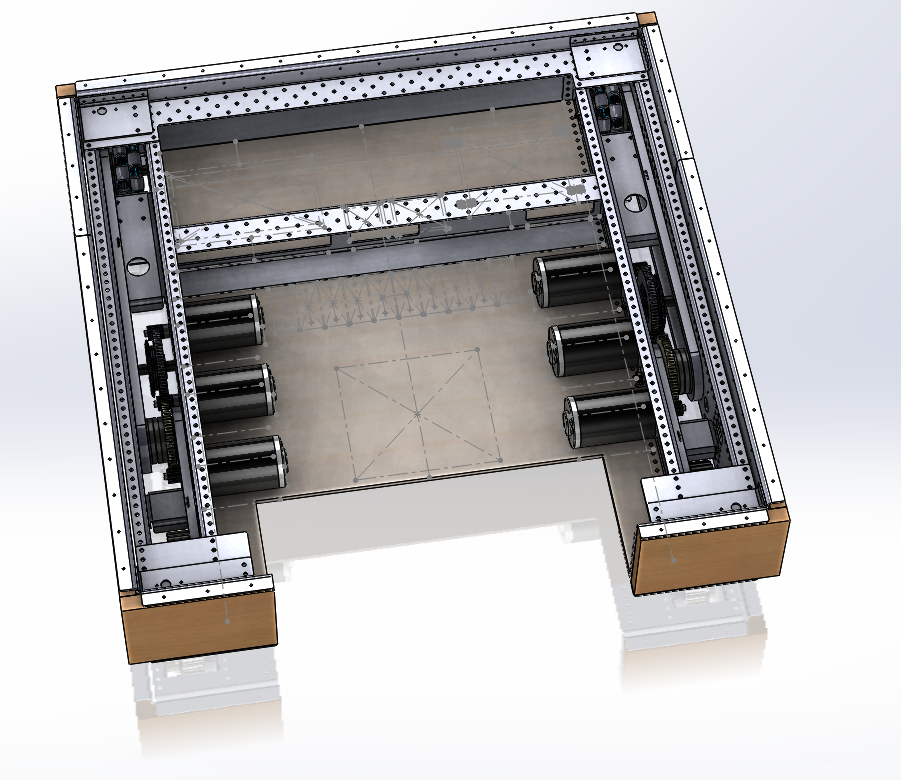

Here is are nearly finished drive train and bumpers CAD.
There are still some big issues with the robot to be worked out but we are also working through some small details as we move towards final CAD to be sent to our Laser cutting sponsor.
Little Things
– Handles
– Pneumatic gauge and release valve locations
– Bumper Latches
– Pneumatic tubing runs
– Wire runs
– How the battery connects to the breaker
– Motor wire runs and zip tie locations
– Spectrum
